Thursday, September 20, 2018

Self Portrait

Our Granddaughter drew a self portrait just before setting out for school, she is 5½. School uniform: Red or White shirt with Blue shorts Smile20180919_151039

Saturday, September 15, 2018

Friday, September 14, 2018

Woodblock trial … #3

Third block all ready to start image carving. Same image to maintain a level of consistency.b3s1Material used: reclaimed scientific instrument box made from Beach and Birch plywood.   The surface layer of ply was good but I was not impressed with internal layers and some voids.  I’ve carved about 60% of the line work, the choice of wood/block is not aesthetically pleasing. I have more uses for plywood than you shake a stick at, but, I don't plan on using it for future blocks.  I’ll finish the carving and print a few samples.

Block #3, I finished the carving, except deepening some of the open areas. 20180917_125112Blocks 1, 2 & 320180917_125204

Thursday, September 06, 2018

Woodblock #2 .. carving proceeds. New UPDATE

20180906_10462820180906_104628UPDATE:  finished carving the main bock face .. Poplar was easy to carve, but proved to be too soft when working with pigments/water etc. The surface of the Poplar would get fuzzy very easily.  Unable to support long term use.  Back to sourcing “harder/tighter” grain samples …..  Prints are just testing .. warming up the block etc.20180911_14252920180907_142905

Saturday, September 01, 2018

Part Deux .. Woodblock #2

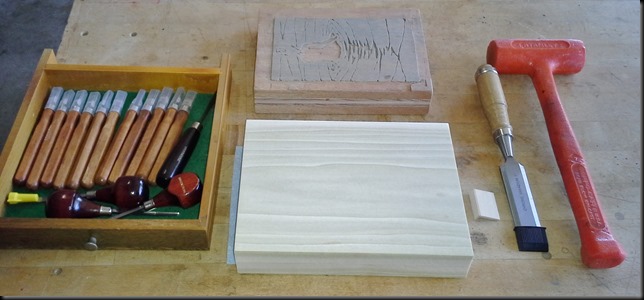

Set up ready to cut registration marks and glue down image to carve.block2start

As a step in my quest to find an available type and source of wood for Japanese style woodblocks.  The elusive Japanese Mountain Cherry is like hens teeth. (If only it grew on trees)   I had some Mahogany in my wood stash, it proved to be unsuitable for what I need. (see previous posts)

Poplar, technically a Hradwood,  is extremely common inexpensive and available for me .. so that's on deck to try.  Cross Section End Grain.block2egImage mounted ready to carve.block2im

Link to tech info:  https://www.wood-database.com/poplar/

Common Name(s): Poplar, Tulip Poplar, Yellow Poplar

Scientific Name: Liriodendron tulipifera

Distribution: Eastern United States

Tree Size: 130-160 ft (40-50 m) tall, 6-8 ft (1.8-2.5 m) trunk diameter

Average Dried Weight: 29 lbs/ft3 (455 kg/m3)

Specific Gravity (Basic, 12% MC): .40, .46

Janka Hardness: 540 lbf (2,400 N)

Modulus of Rupture: 10,100 lbf/in2 (69.7 MPa)

Elastic Modulus: 1,580,000 lbf/in2 (10.90 GPa)

Crushing Strength: 5,540 lbf/in2 (38.2 MPa)

Shrinkage: Radial: 4.6%, Tangential: 8.2%, Volumetric: 12.7%, T/R Ratio: 1.8

Pigment Tray, part B

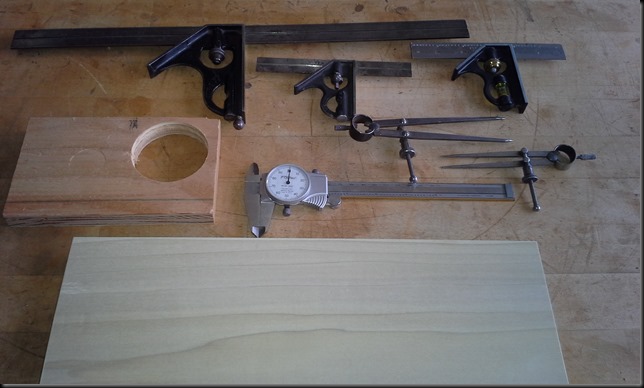

Using a 45 degree mini sled makes chamfering end grain a doddle. I’ll relieve the edge grain sides at 30 degrees by tilting the saw blade.20180901_092549I have a large arsenal of tools form past years .. 1x2x3 blocks various pairs of parallels, makes life simple.20180901_092055Other layout tools to locate and mark centers for large hole drilling (using hole saw) .. note: sample of hole size.20180901_092858Different layout for tray #2 .. not improved just different.cuplo2Just glue on bottom runners .. Shellac to finish,  then “Robert is your father’s brother.”cupinh2

Time for part Deux .. Woodblock & Pigment Tray

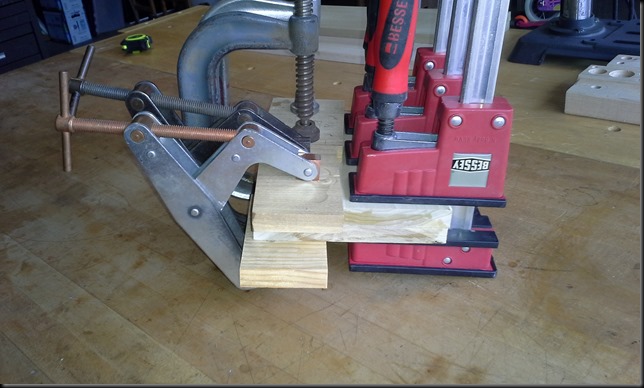

This Test block #2 .. in Glue-Up .. once ready to carve I’ll post an Update.20180901_08062820180901_080643For various reasons I need to make a second pigment tray .. the first is off to a “better home”. So with another set of six cups, slightly larger diameter, I’ll make this while the Block Glue Up dries.20180901_084740
